Air Dryer Cartridge Desiccant for Filling and Remanufacturing

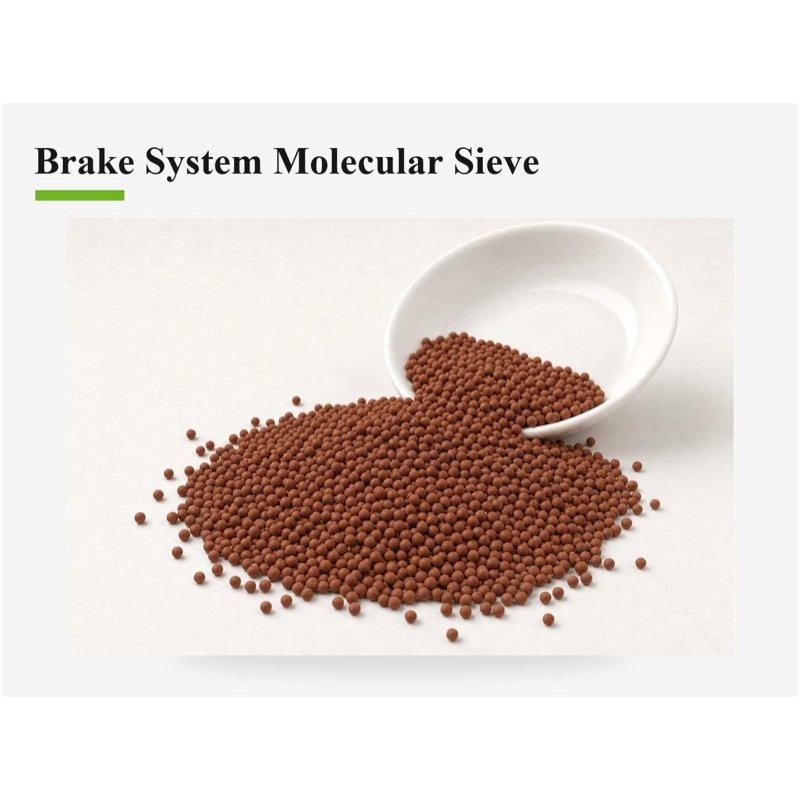

Molecular sieve beads for cartridge filling

Lvneng Air Brake Molecular Sieve is an air dryer cartridge desiccant for pneumatic brake systems. This formed sodium A-type (4A) molecular sieve is the adsorbent loaded inside the cartridge, not a complete dryer cartridge or a friction-brake material. For initial filling, desiccant replacement or cartridge remanufacturing, the final specification and loading arrangement should be confirmed against the dryer design and actual operating conditions.

The beads sit downstream of the air compressor and upstream of the reservoirs and pneumatic circuits. Their primary function is to adsorb water vapor from compressed air, helping reduce condensate formation and accumulation in reservoirs, lines and valves. This helps lower the risks of freezing, internal corrosion and moisture contamination.

Where this desiccant is used

Typical applications include air brake systems in medium- and heavy-duty trucks, tractor units, buses and coaches. The product is also used for initial filling, aftermarket desiccant replacement and remanufacturing of air dryer cartridges and filters.

Single-chamber, twin-chamber and other vehicle compressed-air dryers using purge regeneration are included in the typical applications. These applications do not establish compatibility with every vehicle or cartridge design.

Adsorption and purge regeneration

When the compressor is loaded, wet compressed air passes through the dryer cartridge. The molecular sieve bed adsorbs moisture, and treated air flows to the reservoirs and downstream pneumatic circuits.

During unloading, dry purge air flows back through the bed and carries released moisture out through the exhaust port, preparing the bed for the next operating cycle. The purge and regeneration arrangement depends on the dryer design and control logic.

Air Brake Molecular Sieve technical specification

Air Brake Molecular Sieve has one specification in the referenced Lvneng technical data sheet. The data below should be read together with the Remarks.

Remarks: The above data are measured data from Lvneng. Due to differences in testing conditions, process design and operating conditions, appropriate design margins should be adjusted as needed.

Check pretreatment as well as the beads

The molecular sieve's primary function is moisture adsorption. Liquid oil, oil aerosols and solid particles should be managed by filtration, coalescing or upstream separation.

Excessive compressor oil carryover may coat the beads and reduce moisture adsorption efficiency. Compressor condition, pretreatment and cartridge design should therefore be evaluated together.

Packaging, storage and filling

Standard packaging: 25 kg / Carton Box. Confirm the packaging required for your order when making an inquiry.

Keep the product sealed in a dry location before use. Complete filling promptly after opening, and reseal unused material immediately to prevent moisture pickup from ambient air.

When filling or replacing dryer cartridges, follow the equipment manufacturer's pressure-release, safety and maintenance procedures.

What to include in your cartridge-desiccant inquiry

Start with the dryer or cartridge model and whether the task is initial filling, replacement or remanufacturing. Share the details you already have; identify anything that is still unknown.

• Dryer or cartridge model, internal construction and filling volume.
• Required bead size and current desiccant specification.
• Working pressure, inlet temperature and ambient-temperature range.
• Vehicle air demand, compressor duty cycle and purge/regeneration method.
• Compressor oil carryover and existing filtration or coalescing arrangement.
• Any current moisture, freezing, corrosion, dusting or pressure-drop issue.

The final product specification and loading arrangement should be confirmed against the dryer design and actual operating conditions.

Discuss your air dryer cartridge filling requirement

Send your cartridge or dryer details, required bead size and quantity for this request through the inquiry form. For a quotation request, include the delivery destination. If you do not yet know the specification, describe the equipment and filling task rather than guessing a grade.
