Low Dewpoint Temperature Molecular Sieve Desiccants Zeolite Clay Bond Sodium Ions

10 Kilograms
MOQ
Negotiable
Price
Low Dewpoint Temperature Molecular Sieve Desiccants Zeolite Clay Bond Sodium Ions
Features Gallery Product Description Request A Quote
Features
Specifications
Certificate: SGS & REACH
Shape: Sphere
Bulk Density: G/ml ≥ 0.7
Size: 1.6-2.5mm, 3.0-5.0mm
Dew Point: ℃ ≤ -73
Package Moisture: WT ≤ 1.5%
Compressive Strength: 85N
Static Water Adsorption: WT ≥ 22%
Adsorbent Variety: Molecular Sieve
Usage: Paper Chemicals,Plastic Auxiliary Agents,Petroleum Additives,Rubber Auxiliary Agents,Coating Auxiliary Agents
Attrition Rate: WT < 0.1%
Classification: Chemical Auxiliary Agent
CAS No.: 70955-01-0
High Light:

Low Temperature Molecular Sieve Zeolite

,

Molecular Sieve Desiccants 3.0mm

,

Sodium Ions Molecular Sieve Desiccants

Basic Infomation
Place of Origin: Shaanxi,China
Brand Name: Xi'an Lvneng
Certification: ISO9001:2015
Model Number: Air-brake Molecular Sieve
Payment & Shipping Terms
Packaging Details: 1. 25KG/Carton Drum, 2. 25KG/Carton Box, 3. 150KG/Sealed Iron Drum
Delivery Time: 3-15 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 Tons/ per Month
Product Description

Low Dewpoint At Low Temperature Molecular Sieve Desiccants Zeolite Clay Bond Sodium Ions


Product Description of Molecular Sieve Desiccant

The molecular sieve binder is selected from kaolin or attapulgite. After baking at high temperature, it is naturally cooled to room temperature in a sealed jar, and then it is shipped from the factory. It has the characteristics of high strength and strong water absorption. It is mainly used in automobile braking systems, gas drying systems and dry pneumatic braking systems of automobiles, heavy trucks, trains and ships.
It can exhibit high water absorption at low partial pressures and temperatures up to 100 °C.



The adsorption of different molecules by Molecular Sieves is affected by the following parameters:

1. Zeolite type.
2. Effective pore diameter.
3. Molecular shape and its critical diameter.
4. Chemical structure and molecules polarity.
5. Concentration or partial pressure of the adsorbate.
5. Operating temperature.



The critical diameter of some common species gives entry potential for a particular molecule to pass through the opening of the pores and penetrate into the crystalline structure in order to be adsorbed on the active surface.

The quality of molecular sieves produced by Lvneng is above the industry level. It will not pulverize and pollute the output for a long time, nor will it affect the performance and life of the equipment. Best desiccant for moist air in air brake lines. It is also an environmentally friendly filtration products with chemical filling material.



Packing: bag, barrel or according to customer's request.


Technical Specification of Molecular Sieve Desiccant

Item Unit 8*12 Mesh 4*8 Mesh
Bead Size mm 1.6-2.5 3.0-5.0
Bulk Density g/ml ≥ 0.72 0.70
Equilibrium Water Capacity @ 25°c wt% ≥ 22 22
Equilibrium Methanol Capacity wt% ≥ 15 15
Heat of Adsorption BTU/lb of H2O 1800 1800



Crush strength

Point Contact N ≥ 35 85
Variation Coefficient - 0.3 0.3
Attrition Rate wt% ≤ 0.1 0.1
Size Qualification % ≥ 98 98
Package Moisture wt% ≤ 1.5 1.5

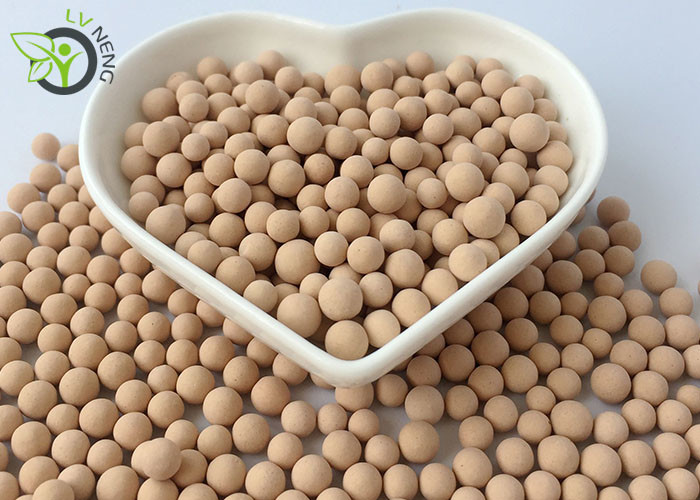

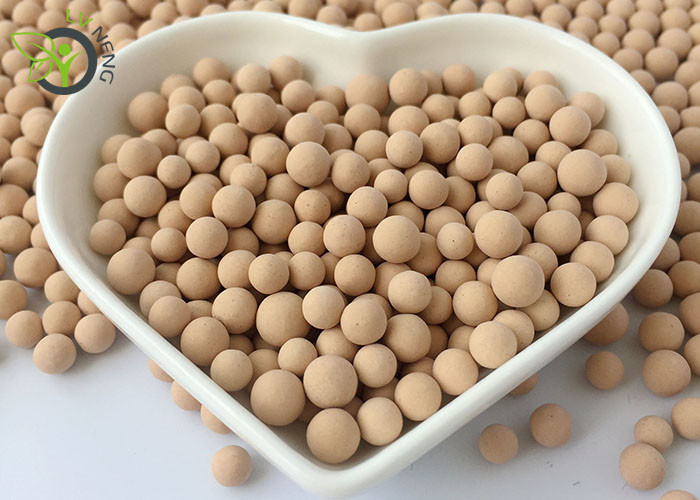

Display of Molecular Sieve Desiccant
Low Dewpoint Temperature Molecular Sieve Desiccants Zeolite Clay Bond Sodium Ions 0

Application of Molecular Sieve Desiccant
Low Dewpoint Temperature Molecular Sieve Desiccants Zeolite Clay Bond Sodium Ions 1
Other Applications:
1. Deep drying of gases and liquids, such as natural gas, industrial gases, rare gases, solvents, paraffins, alcohols and refrigerants.
2. Static drying of medical packaging, electronic components, and materials prone to deterioration.
3. Desiccant for insulating glass devices, lacquers, dyes and PUR devices.
4. Remove carbon dioxide, ammonia and methanol from liquids.

In a word, It is commonly used for drying of organic liquids (solvents, oils, gasoline, and other saturated hydrocarbons), air, liquid gases (propane, butane) as well as technical and noble gases (H2, N2, He, Ar, etc.).

Package of Molecular Sieve Desiccant
Low Dewpoint Temperature Molecular Sieve Desiccants Zeolite Clay Bond Sodium Ions 2

Factory View of Molecular Sieve Desiccant
Low Dewpoint Temperature Molecular Sieve Desiccants Zeolite Clay Bond Sodium Ions 3



Attention of Molecular Sieve Desiccant



  • The product cannot be exposed in the open air & should be stored in dry condition with air-proof bag.
  • It should be regenerated after a certain period of adsorption. The appropriate regenerated temperature would be better below 350°C.
