Screening Performance Adsorbent 3A Molecular Sieve Desiccant For Liquid Gas Purification
Product Description of 3A Molecular Sieve Desiccant
Molecular sieve (also known as synthetic zeolite) is a kind of aluminosilicate microporous crystal, which is composed of SiO and AIO tetrahedron and framework structure. Metal cations (such as Na, K, Ca, etc.) are present in the molecular sieve lattice to balance excess negative charges in the tetrahedron. The types of molecular sieves are mainly divided into: A-type, X-type, Y-type, etc. according to their crystal structure.
Selective adsorption according to molecular polarity, unsaturation and polarizability
Molecular sieves have high affinity for polar molecules and unsaturated molecules; among non-polar molecules, they have a higher selective adsorption advantage for molecules with high polarizability. In addition, molecules with lower boiling points are less likely to be adsorbed by molecular sieves.
Molecular sieve for H2O, NH3, H2S, CO2 and other polymers polarity has a high affinity, especially for water, in low partial pressure (even under 133 pa) or low concentration, high temperature (even at 100℃ or more) and other very harsh conditions still have a high adsorption capacity.
Technical Specification of 3A Molecular Sieve Desiccant
| Item | Unit | 8*12 Mesh | 4*8 Mesh | |
| Bead Size | mm | 1.6-2.5 | 3.0-5.0 | |
| Bulk Density | g/ml ≥ | 0.75 | 0.68 | |
| Equilibrium Water Capacity @ 25°c | wt% ≥ | 21 | 21 | |
| Equilibrium Ethylene Capacity | mg/g ≤ | 3.0 | 3.0 | |
| Heat of Adsorption | BTU/lb of H2O | 1800 | 1800 | |
|
Crush strength |
Point Contact | N ≥ | 35 | 100 |
| Variation Coefficient | - | 0.3 | 0.3 | |
| Attrition Rate | wt% ≤ | 0.1 | 0.1 | |
| Size Qualification | % ≥ | 98 | 98 | |
| Package Moisture | wt% ≤ | 1.5 | 1.5 | |

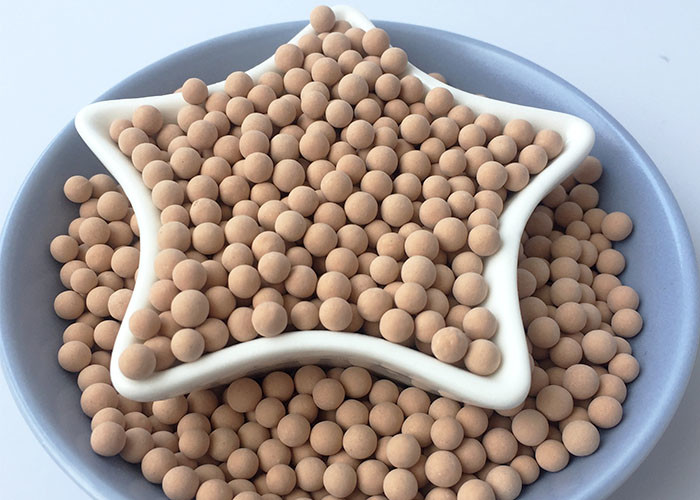

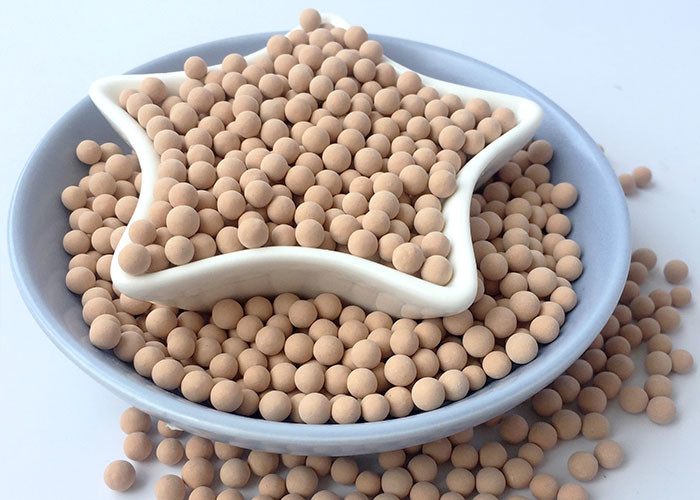

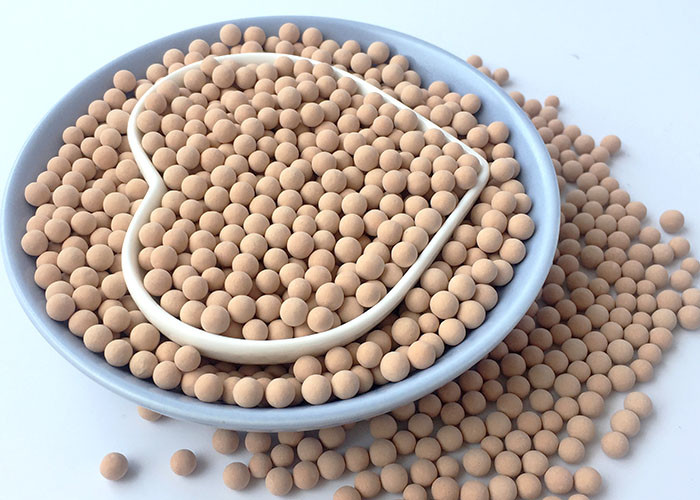

Display of 3A Molecular Sieve Desiccant
Package of 3A Molecular Sieve Desiccant
Factory View of 3A Molecular Sieve Desiccant
Attention of 3A Molecular Sieve Desiccant
FAQ of 3A Molecular Sieve Desiccant
Q: Could we send a free sample for reference?
A: Yes, of course.
Q: What about the price and MOQ?
A: We promise a competitive price with top quality, & accept both mass and small quantity order.
Q: What is the lead time?
A: Within 15 days after received payment.
Q: Payment term?
A: 100% TT in advance. or 30% TT deposit & balance before shipment.
Q: How to solve problems after sales?
A: Take photos of the problems. After confirmed, we will make a satisfying solution for you within 3 days.
For More information please contact us. It's our pleasure to serve you.
