SGS 3A Molecular Sieve Desiccant For Associated Gas Hydrocarbons Co Adsorption

SGS 3A Molecular Sieve Desiccant For Associated Gas Hydrocarbons Co Adsorption
SGS 3A Molecular Sieve Desiccant For Associated Gas Hydrocarbons Co Adsorption SGS 3A Molecular Sieve Desiccant For Associated Gas Hydrocarbons Co Adsorption SGS 3A Molecular Sieve Desiccant For Associated Gas Hydrocarbons Co Adsorption

Large Image :  SGS 3A Molecular Sieve Desiccant For Associated Gas Hydrocarbons Co Adsorption Get Best Price

Product Details:
Place of Origin: Shaanxi,China
Brand Name: Xi'an Lvneng
Certification: ISO9001:2008
Model Number: 3A Molecular Sieve
Payment & Shipping Terms:
Minimum Order Quantity: 10 Kilograms
Price: Negotiable
Packaging Details: 1. 25KG/Carton Drum, 2. 25KG/Carton Box, 3. 150KG/Sealed Iron Drum
Delivery Time: 3-15 work days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100 Tons/ per Month
Detailed Product Description
Certificate: SGS & REACH Shape: Sphere
Bulk Density: G/ml ≥ 0.75 Size: 1.6-2.5mm, 3.0-5.0mm
Dew Point: ℃ ≤ -73 Package Moisture: WT ≤ 1.5%
Compressive Strength: 100N Static Water Adsorption: WT ≥ 21%
Adsorbent Variety: Molecular Sieve Usage: Paper Chemicals,Plastic Auxiliary Agents,Petroleum Additives,Rubber Auxiliary Agents,Coating Auxiliary Agents
Purity: 98% Classification: Chemical Auxiliary Agent
CAS No.: 308080-99-1 Einecs No.: 215-684-8
High Light:

Co Adsorption Molecular Sieve Beads

,

Associated Gas Hydrocarbons Molecular Sieve 3A

,

SGS Zeolite Molecular Sieve

Adsorbent 3A Molecular Sieve Desiccant For Associated Gas & Hydrocarbons Co-Adsorption



Product Description of 3A Molecular Sieve Desiccant

Zeolites are a class of crystalline aluminosilicates. The most basic structure of zeolite is composed of (SiO4) tetrahedron and (AlO4) tetrahedron. Adjacent tetrahedra are connected by oxygen bridges to form rings, which can vary in size. Depending on the number of oxygen atoms forming the ring, there are four oxygen rings, five oxygen rings, six oxygen rings, eight oxygen rings, ten oxygen rings and twelve two-membered oxygen rings. The ring is the channel orifice of the molecular sieve, through which the molecular sieve is sieved. Oxygen rings are connected by oxygen bridges to form polyhedra with three-dimensional space. The polyhedron has hollow cages, which is an important feature of molecular sieve structures. The cavities contain crystal water and cations that neutralize the negative charge of the tetrahedron (AlO4). Part or all of the crystal water can be removed relatively easily by heating or reducing pressure.



Drying of refrigerant.
Isopropyl alcohol dehydration.

Specialized in kerosene and jet fuel drying.
Dehydration of Methanol, Ethanol, and Alcohol.

Dehydration of the unsaturated hydrocarbon material.
Natural gas dehydration and preventing COS formation.

Dehydration of solvents such as benzene, toluene, and xylene.
Static (non-regenerative) dehydration of insulating glass units, either air or aerated.

Drying of gases and liquids, such as associated gas in oil and natural gas. Co-adsorption of Hydrocarbons.
Deep drying of cracked petroleum gas such as ethylene, propylene, butadiene, acetylene and natural gas. As well as polar liquids such as LNG, LPG, solvents.



Technical Specification of 3A Molecular Sieve Desiccant

Item Unit 8*12 Mesh 4*8 Mesh
Bead Size mm 1.6-2.5 3.0-5.0
Bulk Density g/ml ≥ 0.75 0.68
Equilibrium Water Capacity @ 25°c wt% ≥ 21 21
Equilibrium Ethylene Capacity mg/g ≤ 3.0 3.0
Heat of Adsorption BTU/lb of H2O 1800 1800



Crush strength

Point Contact N ≥ 35 100
Variation Coefficient - 0.3 0.3
Attrition Rate wt% ≤ 0.1 0.1
Size Qualification % ≥ 98 98
Package Moisture wt% ≤ 1.5 1.5

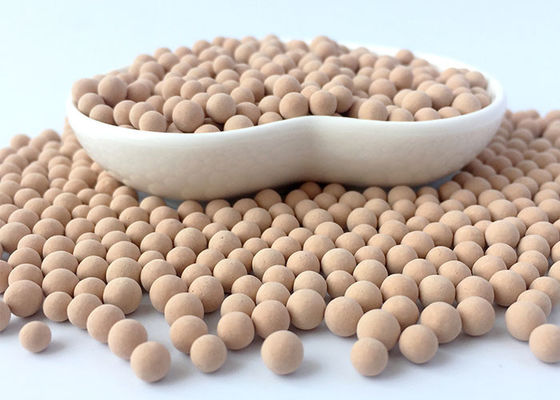

Display of 3A Molecular Sieve Desiccant

SGS 3A Molecular Sieve Desiccant For Associated Gas Hydrocarbons Co Adsorption 0



Package of 3A Molecular Sieve Desiccant

SGS 3A Molecular Sieve Desiccant For Associated Gas Hydrocarbons Co Adsorption 1



Factory View of 3A Molecular Sieve Desiccant

Chemical Zeolite 3A Molecular Sieve Desiccant For Car Refrigeration Drying 2



Attention of 3A Molecular Sieve Desiccant

  • The product cannot be exposed in the open air & should be stored in dry condition with air-proof bag.
  • It should be regenerated after a certain period of adsorption. The appropriate regenerated temperature would be better below 350°C.



FAQ of 3A Molecular Sieve Desiccant

Q: Could we send a free sample for reference?
A: Yes, of course.



Q: What about the price and MOQ?
A: We promise a competitive price with top quality, & accept both mass and small quantity order.



Q: What is the lead time?
A: Within 15 days after received payment.



Q: Payment term?
A: 100% TT in advance. or 30% TT deposit & balance before shipment.



Q: How to solve problems after sales?
A: Take photos of the problems. After confirmed, we will make a
satisfying solution for you within 3 days.



For More information please contact us. It's our pleasure to serve you.
