Sphere Shape Molecular Sieve Desiccant For Insulated Glass Drying Inner Space

10 Kilograms
MOQ
Negotiable
Price
Sphere Shape Molecular Sieve Desiccant For Insulated Glass Drying Inner Space
Features Gallery Product Description Request A Quote
Features
Specifications
Certificate: SGS & REACH
Shape: Sphere
Bulk Density: G/ml ≥ 0.75
Size: 0.5-1.0mm, 1.0-1.5mm, 1.5-2mm
Dew Point: ℃ ≤ -73
Package Moisture: WT ≤ 1.5%
Compressive Strength: 5-35N
Static Water Adsorption: WT ≥ 21%
High Light:

Insulated Glass Molecular Sieve Filter

,

Drying Inner Space Molecular Sieve Beads

,

Sphere Shape Molecular Sieve Drying

Basic Infomation
Place of Origin: Shaanxi,China
Brand Name: Xi'an Lvneng
Certification: ISO9001:2008
Model Number: Insulated Glass Zeolite Molecular Sieve
Payment & Shipping Terms
Packaging Details: 1. Carton Drum/25KG, 2. Carton Box/25KG, 3. Sealed Iron Drum/150KG
Delivery Time: 3-15 work days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100 Tons/ per Month
Product Description

Longer Life Molecular Sieve Desiccant for Drying Inner Space of Insulated Glass



Product Description of Molecular Sieve Desiccant

Molecular sieve can deeply co-adsorb the resident moisture and organics in insulating glass, keeping the insulating glass clear and transparent even at very low temperatures.



The molecular sieve 3A beads are very useful in drying the inner space of insulating glass due to their high water absorption rate and better physical properties, which helps to protect the insulating glass unit. They are basically used for the bright, clean and transparent appearance of glass, even at very low temperatures. 3A molecules have the ability to absorb water as a drying agent for insulating glass and ensure that the life of insulating glass windows is greatly extended.



Technical Specification of Molecular Sieve Desiccant

Insulated Glass Drying Molecular Sieve  Typical Physical Properties
Items Unit Value
Bead Size mm 0.5-1.0 1.0-1.5 1.5-2.0
Bulk Density g/ml ≥ 0.80 0.78 0.75
Equilibrium Water Capacity @ 25℃ wt% ≥ 21 21 21
Equilibrium Nitrogen Capacity mg/g ≤ 2.0 2.0 2.0
Heat of Adsorption BTU/lb of H2O 1800 1800 1800
Crush Strength Point Contact N ≥ 5 15 35
Variation Coefficient - 0.3 0.3 0.3
Dust(Turbidity Meter) ppm ≤ 30 30 30
De4lta T*(10g/10ml H2O) ℃ ≥ 38 38 38
Dew Point ℃ ≤ -73 -73 -73
Loss of Ignition(950℃) wt% ≤ 2 2 2
Size Qualification % 96 96 96
Package Moisture wt% 1.5 1.5 1.5
The interval values above are based on the different grade of Insulated Glass Desiccant

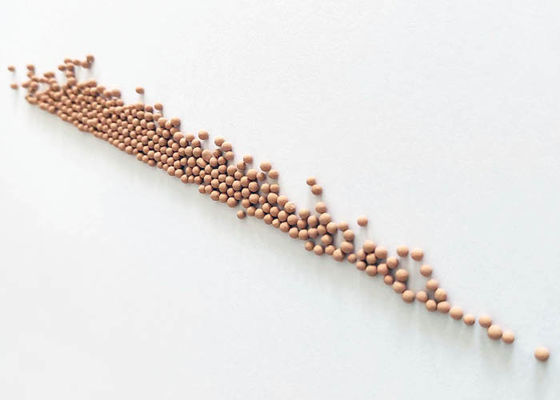

Display of Molecular Sieve Desiccant

Sphere Shape Molecular Sieve Desiccant For Insulated Glass Drying Inner Space 0



Package of Molecular Sieve Desiccant

Sphere Shape Molecular Sieve Desiccant For Insulated Glass Drying Inner Space 1



Factory View of Molecular Sieve Desiccant

Chemical Zeolite 3A Molecular Sieve Desiccant For Car Refrigeration Drying 2



Attention of Molecular Sieve Desiccant

  • The product cannot be exposed in the open air & should be stored in dry condition with air-proof bag.
  • It should be regenerated after a certain period of adsorption. The appropriate regenerated temperature would be better below 350°C.



FAQ of Molecular Sieve Desiccant



Q: Could we send a free sample for reference?
A: Yes, of course.



Q: What about the price and MOQ?
A: We promise a competitive price with top quality, & accept both mass and small quantity order.



Q: What is the lead time?
A: Within 15 days after received payment.



Q: Payment term?
A: 100% TT in advance. or 30% TT deposit & balance before shipment.



Q: How to solve problems after sales?
A: Take photos of the problems. After confirmed, we will make a
satisfying solution for you within 3 days.



For More information please contact us. It's our pleasure to serve you.
