Globular Zeolite Molecular Sieve Desiccant For Adsorbing Dew In Window Glass

10 Kilograms
Globular Zeolite Molecular Sieve Desiccant For Adsorbing Dew In Window Glass
Features Gallery Product Description Request A Quote
Certificate: SGS & REACH
Shape: Sphere
Bulk Density: G/ml ≥ 0.75
Size: 0.5-1.0mm, 1.0-1.5mm, 1.5-2mm
Dew Point: ℃ ≤ -73
Package Moisture: WT ≤ 1.5%
Compressive Strength: 5-35N
Static Water Adsorption: WT ≥ 21%
High Light:

Globular Zeolite Molecular Sieve


Zeolite Molecular Sieve Adsorbing Dew


Window Glass Molecular Sieve Drying

Basic Infomation
Place of Origin: Shaanxi,China
Brand Name: Xi'an Lvneng
Certification: ISO9001:2008
Model Number: Insulated Glass Zeolite Molecular Sieve
Payment & Shipping Terms
Packaging Details: 1. Carton Drum/25KG, 2. Carton Box/25KG, 3. Sealed Iron Drum/150KG
Delivery Time: 3-15 work days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 50 Tons/ per Month
Product Description

Globular Zeolite Molecular Sieve Desiccant for Adsorbing Dew in Window Glass


Product Description of Molecular Sieve Desiccant

IG exhibits high water absorption capacity at low moisture content, which will ensure high glass durability. Molecular sieve IG Mol 3A is used to avoid the co-adsorption of air, which will translate into glass deflection and deflection of the glass panel. It is also free of dust and static.


They are mainly supported and divided by aluminium spacers bar, then sealed. We offer Molecular Sieve IG in 0.5mm to 2.0mm beads packed under the spacer by a specialized device.


It is a highly porous crystalline aluminosilicate in beaded form. The pore openings in the crystal are approx 3A in diameter and function to absorb gas or liquid molecules smaller than the effective diameter of their pores. The diameter in the molecule can be changed to adjust the pore size that allow preferential adsorption.


Technical Specification of Molecular Sieve Desiccant

Insulated Glass Drying Molecular Sieve  Typical Physical Properties
Items Unit Value
Bead Size mm 0.5-1.0 1.0-1.5 1.5-2.0
Bulk Density g/ml ≥ 0.80 0.78 0.75
Equilibrium Water Capacity @ 25℃ wt% ≥ 21 21 21
Equilibrium Nitrogen Capacity mg/g ≤ 2.0 2.0 2.0
Heat of Adsorption BTU/lb of H2O 1800 1800 1800
Crush Strength Point Contact N ≥ 5 15 35
Variation Coefficient - 0.3 0.3 0.3
Dust(Turbidity Meter) ppm ≤ 30 30 30
De4lta T*(10g/10ml H2O) ℃ ≥ 38 38 38
Dew Point ℃ ≤ -73 -73 -73
Loss of Ignition(950℃) wt% ≤ 2 2 2
Size Qualification % 96 96 96
Package Moisture wt% 1.5 1.5 1.5
The interval values above are based on the different grade of Insulated Glass Desiccant

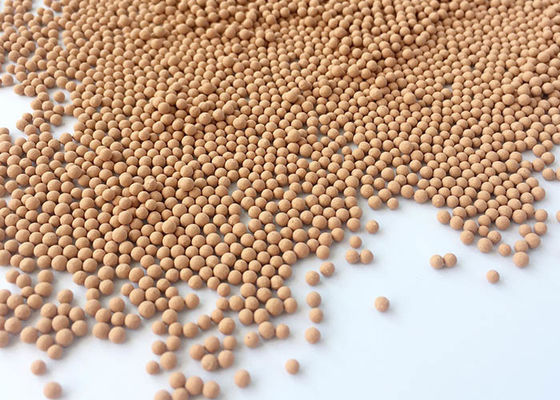

Display of Molecular Sieve Desiccant

Globular Zeolite Molecular Sieve Desiccant For Adsorbing Dew In Window Glass 0


Package of Molecular Sieve Desiccant

Globular Zeolite Molecular Sieve Desiccant For Adsorbing Dew In Window Glass 1


Factory View of Molecular Sieve Desiccant

Chemical Zeolite 3A Molecular Sieve Desiccant For Car Refrigeration Drying 2


Attention of Molecular Sieve Desiccant

  • The product cannot be exposed in the open air & should be stored in dry condition with air-proof bag.
  • It should be regenerated after a certain period of adsorption. The appropriate regenerated temperature would be better below 350°C.


FAQ of Molecular Sieve Desiccant


Q: Could we send a free sample for reference?
A: Yes, of course.


Q: What about the price and MOQ?
A: We promise a competitive price with top quality, & accept both mass and small quantity order.


Q: What is the lead time?
A: Within 15 days after received payment.


Q: Payment term?
A: 100% TT in advance. or 30% TT deposit & balance before shipment.


Q: How to solve problems after sales?
A: Take photos of the problems. After confirmed, we will make a
satisfying solution for you within 3 days.
