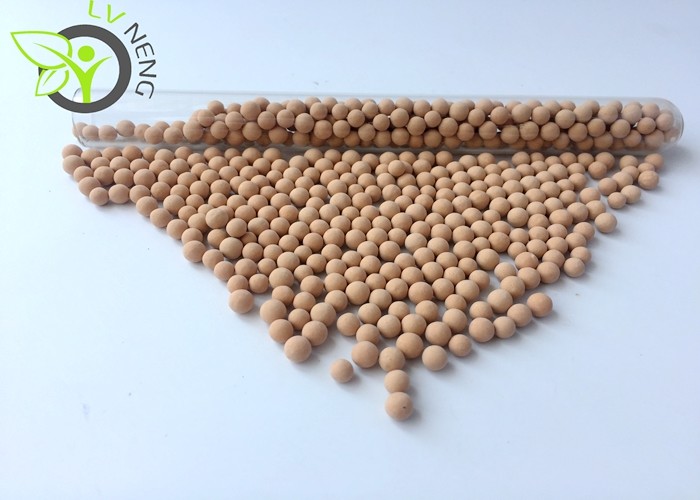

Molecular Sieve 3A is an alkali metal alumino-silicate; it is the potassium form of the type A crystal structure. Type 3A has an effective pore opening of about 3 angstroms (0.3nm). This is large enough to allow in moisture, but excludes molecules such as unsaturated hydrocarbons which can potentially form polymers; and this maximizes lifetime when dehydrating such molecules
0.4K2O 0.6Na2O Al2O3 2.OSiO2 4.5H2O
SiO2 : Al2O3 ≈2
Technical Index
| Molecular Sieve 3A Typical Physical Properties | ||||
| Item | Unit | 8*12 Mesh | 4*6 Mesh | |
| Bead Size | mm | 1.6-2.5 | 3.0-5.0 | |
| Bulk Density | g/ml ≥ | 0.70-0.82 | 0.65-0.80 | |
| Equilibrium Water Capacity @ 25℃ | wt% ≥ | 19.0-21.0 | 19.0-21.0 | |
| Equilibrium Ethylene Capacity | mg/g≤ | 3.0 | 3.0 | |
| Heat of Adsorption | BTU/lb of H2O | 1800 | 1800 | |
| Crush Strength | Point Contact | N ≥ | 20-58 | 80-130 |
| Variation Coefficient | - | 0.3 | 0.3 | |
| Attrition Rate | wt% ≤ | 0.1 | 0.1 | |
| Size Qualification | % ≥ | 98 | 98 | |
| Package Moisture | wt% ≤ | 1.5 | 1.5 | |
| The interval value of the indexes above are on the basis of the different grade of Molecular Sieve 3A | ||||
Applications:
1. Used in oil gas, gas streams of unsaturated hydrocarbon material dehydration of 3A molecular sieve professional;
2. Drying of highly polar compounds, such as methanol and ethanol. It is also used for dehydration of liquid alcohol and solvents;
3. Used for professional kerosene and jet fuel drying;
4. Application of 3a molecular sieve in isopropanol dehydration; Used for natural gas dehydration and prevent the formation of COS;
5. Used in deep desiccation of cracked petroleum gases, such as ethylene, propylene, butadiene, acetylene and natural gas, and of polar liquid, such as ethanol, LPG and solvent;
6. Static,(non-regenerative) dehydration of insulating glass units, whether air filled or gas-filled;
7. Drying of refrigerants; dehydration of food-grade carbon dioxide;
8. Used for desiccation of gases and liquids, such as associated gas in oil field and natural gas;
9. Adsorb H20, H2S, NH3, SO2, CO2, C2H5OH, C2H6 and so on; Used for refining and purification of gases and liquids, such as argon;
10. For dehydration of benzene, toluene, xylene and other solvents; dehydration of olefin cracked gas in ethylene industry.
Attention
1. The product cannot be exposed in the open air and should be stored in dry condition with air-proof package.
2. The product should be regenerated after a certain period of adsorption. The appropriate regenerated temperature would be better below 350°C.
Packaging
1, 25KG/carton; 2, 35KG/carton drum; 3, 150KG/Sealed iron drum
Delivery Time
About 3-15 days after the payment.
