Black Carbon Molecular Sieve , Carbon Dioxide Adsorption Meet PSA Nitrogen Systems
Product Description

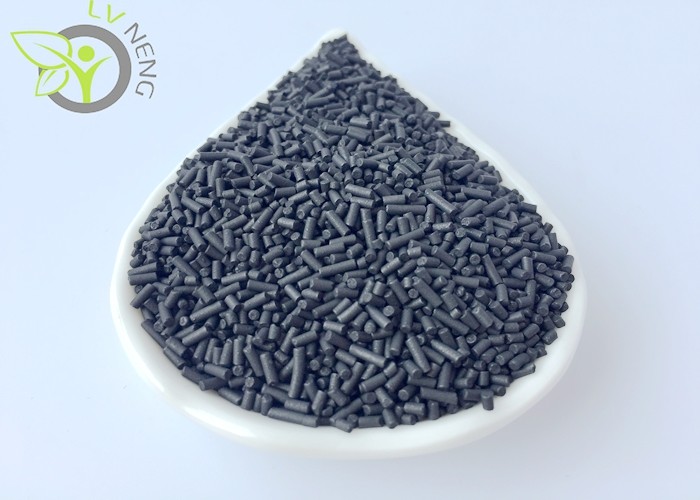

CMS takes the appearance of cylindrical black solid, contains countless 4 angstrom fine pores. It can be used to separate air into nitrogen and oxygen. In industry, CMS can concentrate nitrogen from air with PSA systems. Our CMS products have the character of large nitrogen yield capacity; high nitrogen recovery. It can meet the requirement of all types of PSA nitrogen systems. The carbon molecular sieve is widely applied in petroleum chemical industry, the heat treatment of metal, the electronic manufacture and food preservation industries.
Technical Index
| Model | Adsorption pressure (Mpa) |
N2 concentration | Nitrogen production volume | Air and nitrogen ratio |
| CMS-220 | 0.75-0.8 | 95 | 380 | 1.75 |
| 97 | 340 | 2.0 | ||
| 98 | 260 | 2.25 | ||
| 98.5 | 255 | 2.29 | ||
| 99 | 245 | 2.38 | ||
| 99.5 | 220 | 2.55 | ||
| 99.9 | 140 | 3.7 | ||
| 99.99 | 100 | 4.7 | ||
| 99.999 | 55 | 6.8 | ||
| CMS-240 | 0.75-0.8 | 95 | 420 | 1.75 |
| 97 | 360 | 2.0 | ||
| 98 | 285 | 2.2 | ||
| 98.5 | 275 | 2.25 | ||
| 99 | 260 | 2.35 | ||
| 99.5 | 240 | 2.5 | ||
| 99.9 | 155 | 3.5 | ||
| 99.99 | 110 | 4.65 | ||
| 99.999 | 65 | 6.7 | ||
| CMS-260 | 0.75-0.8 | 99 | 320 | 2.2 |
| 99.5 | 260 | 2.5 | ||
| 99.9 | 175 | 3.5 | ||
| 99.99 | 120 | 4.6 | ||
| 99.999 | 70 | 6.7 | ||
| Particle Diameter | 1.1-1.2MM | Stacking Density | 680-700G/L | Test Temperature |
| Adsorption Time | 2X50S | Compression Strength | ≥75N/Particle | ≤20℃ |
Typical Application
CMS takes the appearance of cylindrical black solid, contains countless 4 angstrom fine pores, it can be used to separate air into nitrogen and oxygen. In industry, CMS can concentrate nitrogen from air with PSA systems. Our CMS products have the character of large nitrogen yield capacity; high nitrogen recovery. It can meet the requirement of all types of PSA nitrogen systems. The carbon molecular sieve is widely applied in petroleum chemical industry, the heat treatment of metal, the electronic manufacture and food preservation industries.
Storage
The molecular sieve shall be stored at room temperature, in which the relative humidity is not exceed 90%, and be not exposed in air, and prevented against water, acids and alkalizes.
Packaging
1, 25KG/carton; 2, 35KG/carton drum; 3, 150KG/Sealed iron drum
Delivery Time
About 3-15 days after the payment.
