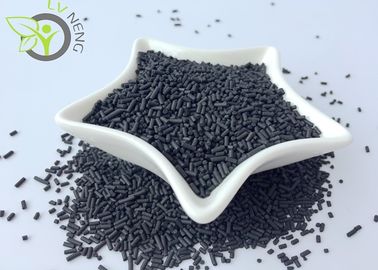

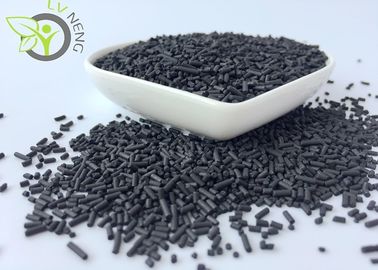

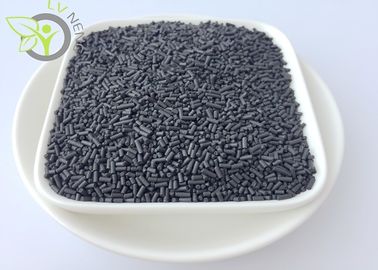

Petroleum Chemical CarbonMolecular Sieve black Particle Adsorent 4 Angstroms
Product Description
Carbon molecular sieve (CMS) is a nonpolar adsorbent model, performance with molecular oxygen at the normal temperature and pressure swing adsorption in the air, so it can get the nitrogen rich gas. Air separation depends on the ability of gases in the air in the carbon molecular sieve of different diffusion speed, in the micropores or adsorption force, different or two effects also play a role, carbon molecular sieve air separation nitrogen is a performance based on.
Carbon molecular sieve is currently the preferred engineering circles of pressure swing adsorption (P.S.A) adsorbent air separation nitrogen-rich, the nitrogen is widely used in chemical industry, petroleum and natural gas industry, electronic industry, food industry, coal industry, the pharmaceutical industry, cable industry, metal heat treatment, transportation and storage.
Technical Index
| Model | Adsorption pressure (Mpa) |
N2 concentration | Nitrogen production volume | Air and nitrogen ratio |
| CMS-220 | 0.75-0.8 | 95 | 380 | 1.75 |
| 97 | 340 | 2.0 | ||
| 98 | 260 | 2.25 | ||
| 98.5 | 255 | 2.29 | ||
| 99 | 245 | 2.38 | ||
| 99.5 | 220 | 2.55 | ||
| 99.9 | 140 | 3.7 | ||
| 99.99 | 100 | 4.7 | ||
| 99.999 | 55 | 6.8 | ||
| CMS-240 | 0.75-0.8 | 95 | 420 | 1.75 |
| 97 | 360 | 2.0 | ||
| 98 | 285 | 2.2 | ||
| 98.5 | 275 | 2.25 | ||
| 99 | 260 | 2.35 | ||
| 99.5 | 240 | 2.5 | ||
| 99.9 | 155 | 3.5 | ||
| 99.99 | 110 | 4.65 | ||
| 99.999 | 65 | 6.7 | ||
| CMS-260 | 0.75-0.8 | 99 | 320 | 2.2 |
| 99.5 | 260 | 2.5 | ||
| 99.9 | 175 | 3.5 | ||
| 99.99 | 120 | 4.6 | ||
| 99.999 | 70 | 6.7 | ||
| Particle Diameter | 1.1-1.2MM | Stacking Density | 680-700G/L | Test Temperature |
| Adsorption Time | 2X50S | Compression Strength | ≥75N/Particle | ≤20℃ |
Storage
The molecular sieve shall be stored at room temperature, in which the relative humidity does not exceed 90%, and be not exposed to air, and prevented against water, acids and alkalizes.
Packaging
1, 25KG/carton; 2, 35KG/carton drum; 3, 150KG/Sealed iron drum
Delivery Time
About 3-15 days after the payment.
