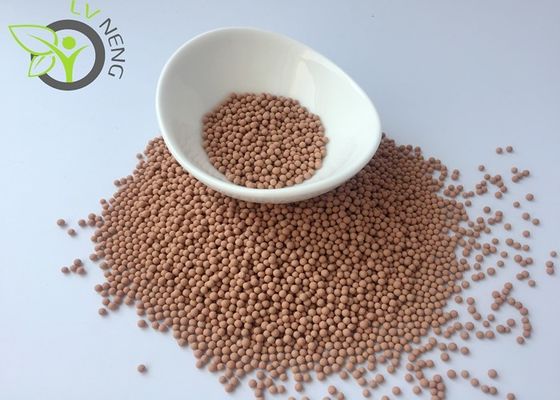

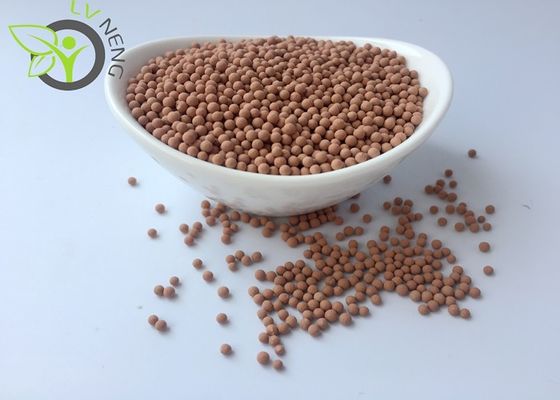

Refrigerated Air Dryer Water Removal Molecular Sieve Desiccant Bag XH-7
Products Introduction
Refrigerant are mainly constituted by the chloride and fluoride containing hydrocarbon in the refrigerating plants. During the refrigerant diffusion process transudatory water will freeze in the valve and block the refrigerant system, meanwhile refrigerant will be hydrolyzed into corrosive gas such as hydrogen chloride and fluoride etc.
XH series molecular sieves can effectively remove the moisture thus avoid the corrosion and blocking of the system caused by freeze.
Technical Index
| Refrigeration Drying Molecular Sieve XH-7 Typical Physical Properties | |||
| Items | Unit | XH-7 | |
| Bead Size | mm | 1.6-2.5 | |
| Equilibrium Water Capacity @ 25℃ | wt% ≥ | 17.0-18.0 | |
| Bulk Density | g/ml ≥ | 0.80-0.90 | |
| Crush Strength | N ≥ | 60-100 | |
| Attrition Rate | Dry | wt% ≤ | 0.1 |
| Humidity | wt% ≤ | 2.0 | |
| Package Moisture | wt% ≤ | 1.5 | |
| The interval value of the indexes above are on the basis of the different grade of Refrigeration Desiccant | |||
Application
When choosing refrigerant, special molecular sieve should come into the first consideration.
1. The XH-5 refrigerant desiccant molecular sieve is a basic type for refrigeration desiccant
2. The XH-7 refrigerant desiccant molecular sieve is suitable for refrigerant with stable chemical properties such as R-134a.
3. The XH-9 refrigerant desiccant molecular sieve is suitable for all refrigerants.
Storage
The molecular sieve shall be stored at room temperature, in which the relative humidity is not exceed 90%, and be not exposed in air, and prevented against water, acids and alkalizes.
Packaging
1, 25KG/carton; 2, 35KG/carton drum; 3, 150KG/Sealed iron drum
Delivery Time
About 3-15 days after the payment.
