3a Molecular Sieve 3-5mm Price Used For Dehydration Of Liquids (Such As Ethanol)
Overview

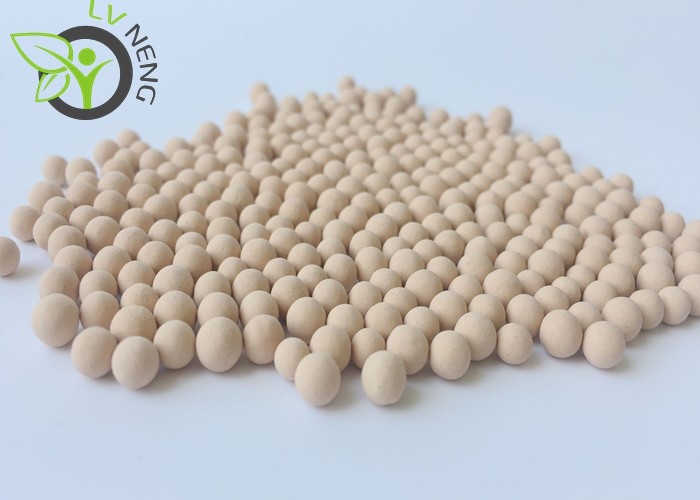

3A molecular sieve is a synthetic zeolite of A-type crystal structure in potassium-sodium form with a pore opening of 3 angstroms (0.3 nm).
Chemical Formula
2/3K2O*1/3Na2O*Al2O3*2SiO2*9/2H2O
Technical Index
Molecular Sieve 3A Typical Physical Properties | ||||
Item | Unit | 8*12 Mesh | 4*6 Mesh | |
Bead Size | mm | 1.6-2.5 | 3.0-5.0 | |
Bulk Density | g/ml ≥ | 0.70-0.82 | 0.65-0.80 | |
Equilibrium Water Capacity @ 25℃ | wt% ≥ | 19.0-21.0 | 19.0-21.0 | |
Equilibrium Ethylene Capacity | mg/g≤ | 3.0 | 3.0 | |
Heat of Adsorption | BTU/lb of H2O | 1800 | 1800 | |
Crush Strength | Point Contact | N ≥ | 20-58 | 80-130 |
Variation Coefficient | - | 0.3 | 0.3 | |
Attrition Rate | wt% ≤ | 0.1 | 0.1 | |
Size Qualification | % ≥ | 98 | 98 | |
Package Moisture | wt% ≤ | 1.5 | 1.5 | |
The interval value of the indexes above are on the basis of the different grade of Molecular Sieve 3A |
Strength
Faster adsorption rate, More regeneration times Higher crush strength, stronger anti-pollution capacity, lower wear rate, longer lifespan.
The preferred desiccant of gas and liquid in Petroleum and chemical industry for Deep drying, refining and the polymerization.
Application
1, Dehydration of liquids (such as Ethanol)
2, Dehydration of air
3, Dehydration of Refrigerant
4, Desiccation of natural gas and methane gas
5, Desiccation of unsaturated hydrocarbons, pyrolysis gas, ethylene, acetylene, propylene, butadiene
Storage
The molecular sieve shall be stored at room temperature, in which the relative humidity does not exceed 90%, and be not exposed to air, and prevented against water, acids and alkalizes.
Attention
1. The product cannot be exposed in the open air and should be stored in dry condition with the air-proof package.
2. The product should be regenerated after a certain period of adsorption. The appropriate regenerated temperature would be better below 350°C.
