|Certificate:||SGS & REACH||Shape:||Particle|
|Bulk Density:||G/ml ≥ 0.72-0.82||Size:||1.6-2.5mm, 3.0-5.0mm|
|Dew Point:||℃ ≤ -73||Package Moisture:||≤1.5%|
Molecular Sieve for Insulating Hollow Glass,
Zeolite Molecular Sieve Particle Shaped,
1.0mm Zeolite Molecular Sieve
HIGH PRESSURE INSULATING HOLLOW GLASS ZEOLITE MOLECULAR SIEVE ADSORBENT FACTORY
Product Description of Molecular Sieve Adsorbent:
The product is for Insulating Glass(IG), used to adsorb continuously an amount of moisture from the interspaces, maintains clean and transparent even at very low temperatures, minimizes pressure changes from seasonal and diurnal temperature difference which can eventually lead to distortion of IG or even broken. As a result, our product can fully extend the lifetime of the IG units by completely solving the distortion problems which ordinary IG desiccants find difficult to deal with. Due to the development of material science and the application of new materials, the products are divided into artificial zeolite adsorbent and natural zeolite adsorbent.
Insulating glass molecular sieve can co-adsorb the resident moisture and organics in insulating glass, keeping the insulating glass clear and transparent even at very low temperatures.
In the meantime, it can successfully avoid the tremendous air pressure difference placed on the glass, which was caused by the great change of temperature because of the seasonal variation and day-night transformation, thus it resolves the problems of windows distortion by insulating glass inflation and shrink, expand the life of insulating glass windows.
Technical Parameter of Molecular Sieve Adsorbent:
|Insulated Glass Drying Molecular Sieve Typical Physical Properties|
|Bulk Density||g/ml ≥||0.72-0.82||0.70-0.80||0.68-0.78|
|Equilibrium Water Capacity @ 25℃||wt% ≥||19.0-21.5||19.0-21.5||19.0-21.5|
|Equilibrium Nitrogen Capacity||mg/g ≤||2||2||2|
|Heat of Adsorption||BTU/lb of H2O||1800||1800||1800|
|Crush Strength||Point Contact||N ≥||-||10-20||30-50|
|Dust(Turbidity Meter)||ppm ≤||30||30||30|
|Delta T*(10g/10ml H2O)||℃ ≥||38||38||38|
|Dew Point||℃ ≤||-73||-73||-73|
|Loss of Ignition(950℃)||wt% ≤||2||2||2|
|Size Qualification||% ≥||96||96||96|
|Package Moisture||wt% ≤||1.5||1.5||1.5|
|The interval value of above indexes are based on the grades of Insulated Glass Desiccant|

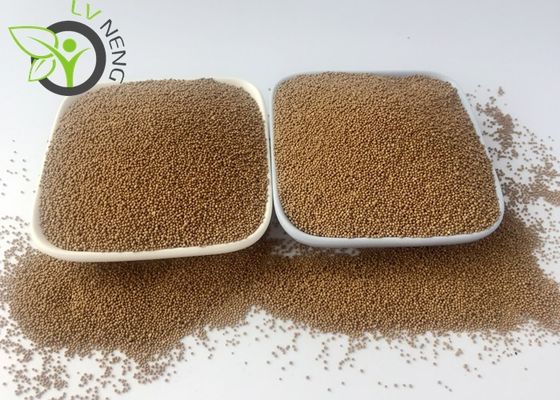

Profile Display of Molecular Sieve Adsorbent:
The attention of Molecular Sieve Adsorbent:
1. The product cannot be exposed in the open air and should be stored in dry condition with an air-proof package.
2. The product should be regenerated after a certain period of adsorption. The appropriate regenerated temperature would be better below 350°C.
