Purification Oxygen Concentrator Adsorbent 5a Molecular Sieve For PSA
Products Introduction

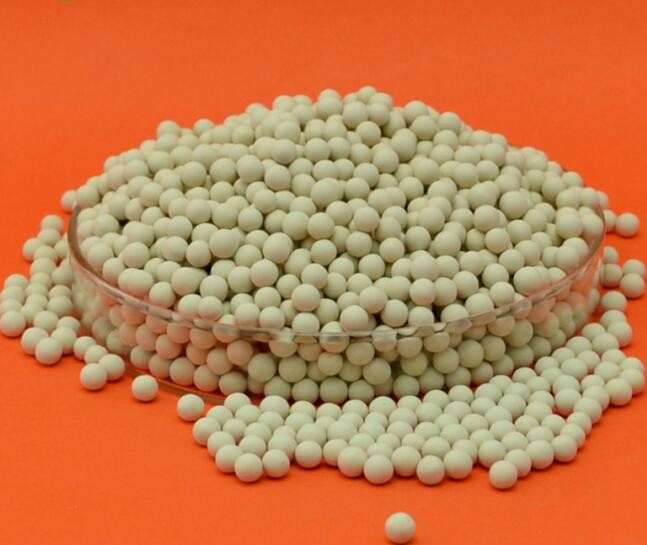

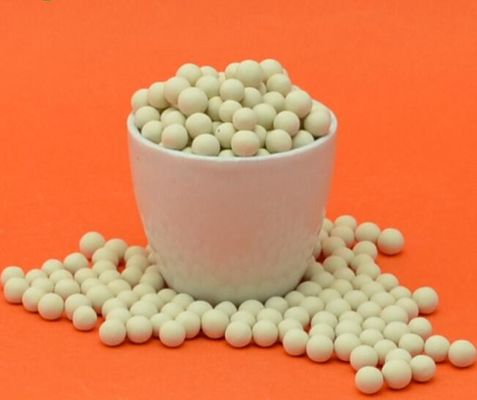

Molecular Sieve adsorbents with a pore size of 5 angstrom (5A), 5A molecular sieves are unable to adsorb any molecules or impurities that are smaller than 5A. A calcium form of type A crystalline structure, this particular sieve is an alkali-aluminosilicate that is most commonly used to separate isomerous alkanes from normal alkanes and to co-adsorb moisture and water along with carbon dioxide from gases. In additional 5A molecular sieves are used for gaseous pressure swing adsorption (PSA)—that is to separate particular gases from other gases. The rate of adsorption sequence for 5A molecular sieves is C3-C14, C2H5CL, C2H5Br, CH3L, C2H5NH2, CH2CL2CH2Br2, CHF2CL, CHF3, CF4, (CH3)NH2, B2H6CF2Cl2, CHFCl2, and CF3Cl.
Technical Parameter
| Molecular Sieve 5A Typical Physical Properties | ||||
| Items | Unit | 8*12 Mesh | 4*6 Mesh | |
| Bead Size | mm | 1.6-2.5 | 3.0-5.0 | |
| Bulk Density | g/ml ≥ | 0.70-0.82 | 0.65-0.80 | |
| Equilibrium Water Capacity @ 25℃ | wt% ≥ | 20.5-22.0 | 20.5-22.0 | |
| Equilibrium N-hexane Capacity | wt% ≥ | 14.0 | 14.0 | |
| Heat of Adsorption | BTU/lb of H2O | 1800 | 1800 | |
| Crush Strength | Point Contact | N ≥ | 30-60 | 80-130 |
| Variation Coefficient | - | 0.3 | 0.3 | |
| Attrition Rate | wt% ≤ | 0.1 | 0.1 | |
| Size Qualification | % ≥ | 98 | 98 | |
| Package Moisture | wt% ≤ | 1.5 | 1.5 | |
| The interval value of the indexes above are on the basis of the different grade of Molecular Sieve 5A | ||||
Applications
1. Separating paraffin
2. Removing hydrocarbons and moisture from SF6 refrigerants
3. Pressure Swing Adsorption (PSA) application for oxygen and hydrogen.
25 Kg/Carton Barrel
150 Kg/ Sealed Iron Drum
Storage
The molecular sieve shall be stored at room temperature, in which the relative humidity is not exceed 90%, and be not exposed in air, and prevented against water, acids and alkalizes.
