3-5mm 4a Molecular Sieve Desiccant Detergent Assistant,Natural Gas Dehydration,Air Dryer
Product Description

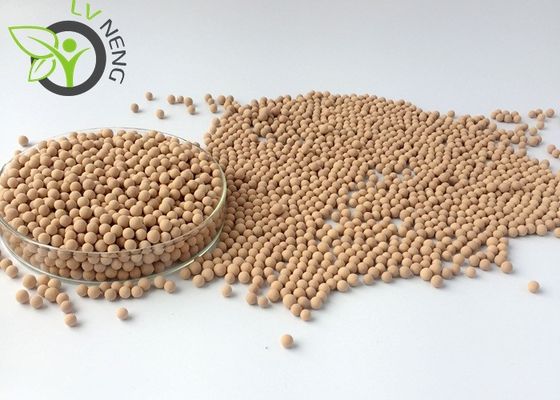

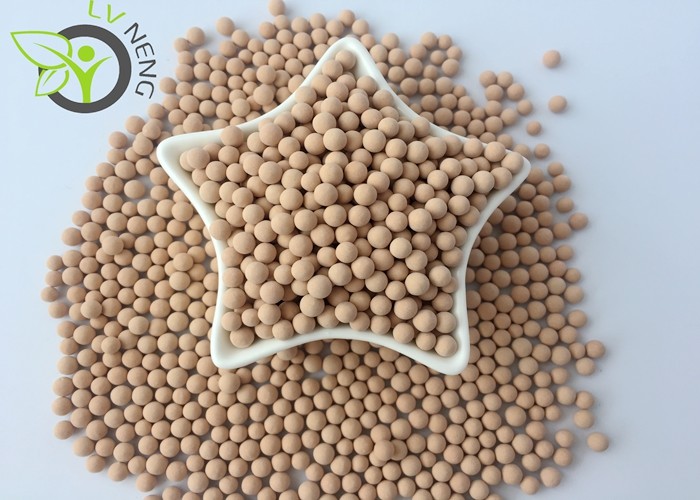

Molecular Sieve type 4A is an alkali alumino silicate; it is the sodium form of the Type A crystal structure. 4A molecular sieve has an effective pore opening of about 4 angstroms (0.4nm). KANGYU type 4A molecular sieve will adsorb most molecules with a kinetic diameter of less than 4 angstroms and exclude those larger. Such adsorbable molecules include simple gas molecules such as oxygen, nitrogen, carbon dioxyde and straight chain hydrocarbons. Branched chain hydrocarbons and aromatics are excluded.
Technical Index
Molecular Sieve 4A Typical Physical Properties | ||||
Items | Unit | 8*12 Mesh | 4*6 Mesh | |
Bead Size | mm | 1.6-2.5 | 3.0-5.0 | |
Bulk Density | g/ml ≥ | 0.70-0.82 | 0.65-0.80 | |
Equilibrium Water Capacity @ 25℃ | wt% ≥ | 20.5-22.5 | 20.5-22.5 | |
Equilibrium Methanol Capacity | wt% ≥ | 15.0 | 15.0 | |
Heat of Adsorption | BTU/lb of H2O | 1800 | 1800 | |
Crush Strength | Point Contact | N ≥ | 30-80 | 85-160 |
Variation Coefficient | - | 0.3 | 0.3 | |
Attrition Rate | wt% ≤ | 0.1 | 0.1 | |
Size Qualification | % ≥ | 98 | 98 | |
Package Moisture | wt% ≤ | 1.5 | 1.5 | |
The interval value of the indexes above are on the basis of the different grade of Molecular Sieve 4A |
Typical Chemical Formula
Na2O . Al2O3 . 2SiO2 . 4.5 H2O
SiO2 : Al2O3 ≈2
Storage
The molecular sieve shall be stored at room temperature, in which the relative humidity is not exceed 90%, and be not exposed in air, and prevented against water, acids and alkalizes.
Packaging
1, 25KG/carton; 2, 35KG/carton drum; 3, 150KG/Sealed iron drum
Delivery Time
About 3-15 days after the payment.
