Air Separation 13x Molecular Sieve Desiccant Deeply Drying For General Gas

10 Kilograms
Air Separation 13x Molecular Sieve Desiccant Deeply Drying For General Gas
Features Gallery Product Description Request A Quote
Certification: SGS REACH
MOQ: 10 KG
Package: 25kg/ Carton Drum
CO2 Absorption: 18.0
Size: 2.0-3.0 Mm,3.0--5.0 Mm , 4.0-6.0 Mm
Static Adsorbed Water: 25.0%
High Light:

uop molecular sieve 13x


molecular sieve 13x msds

Basic Infomation
Place of Origin: Shanxi,China
Brand Name: Xi'an Lvneng
Model Number: 13x Molecular Sieve Desiccant
Payment & Shipping Terms
Packaging Details: 1. Carton Drum/25KG 2. Carton Box/25KG; 3. Iron Drum/150KG
Delivery Time: 3-15 work days
Supply Ability: 50 Tons/ per Month
Product Description

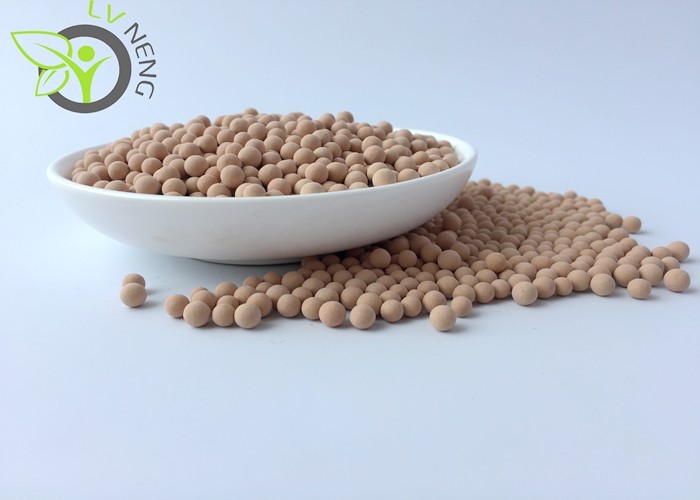

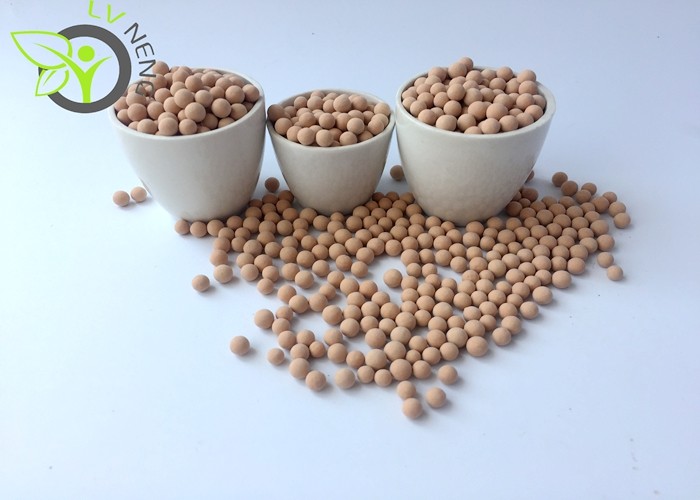

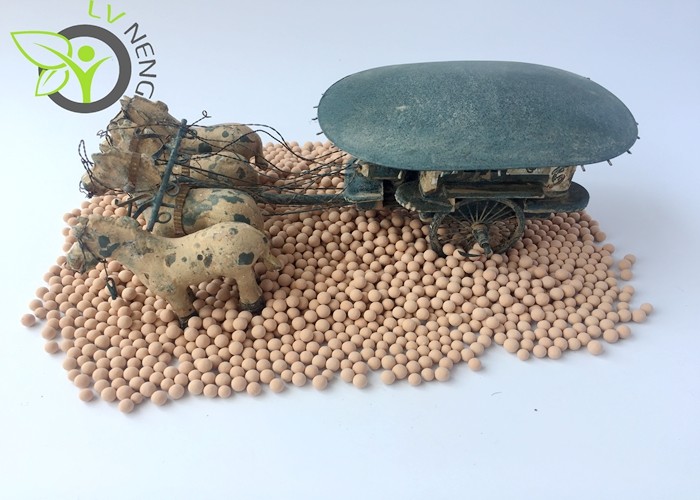

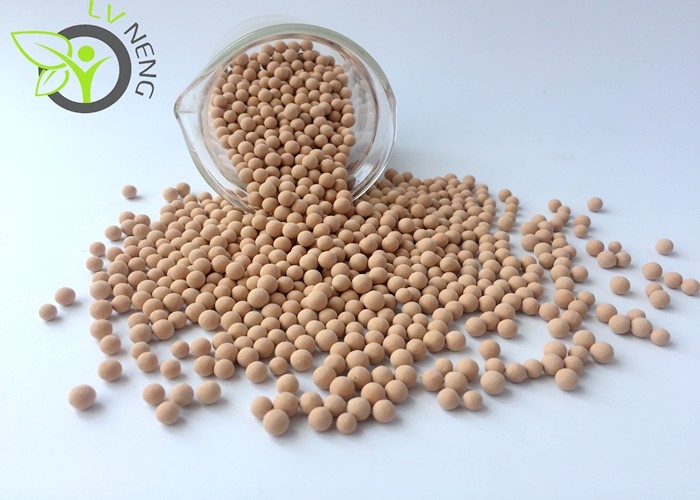

13x Molecular Sieve Desiccant For General Gas (Such As Compressed Air, Permanent Gas) Deeply Drying




Has a pore size of roughly 10A. This is considerably larger than any of the A-type openings. This desiccant is used primarily for refinements of liquid and gases because it offers synchronized absorption for bi-molecule and tri-molecule. It can co-adsorb CO2 and H2O, H2O and H2S. 13X Mole sieve also has applications as a desiccant for medical and compressor uses and as a c catalyze carrier. The sequence rate of adsorption is SF6, CHCL3, CHBr3, CHI3, N-C3F8, CCL4, N-C4F10, N-C7H16, CBr4, C6H6, B5H10, (CH3)3N, C(CH4)4, (C2H5)3N, C(CH3)C3CL, C(CH3)3Br, and C(CH3)3CH.


It has become one of the most reliable desiccants for a variety of applications including:


Air refining by removing carbon dioxide and water.
Oxygen PSA (Pressure Swing Adsorption) process.
Removal of grease and solvents.
Removal of mercaptans and hydrogen sulfide from natural gas using patented Zeochem technology.
Removal of mercaptans and hydrogen sulfide from hydrocarbon liquid.


Technical Parameter


Molecular Sieve 13X Typical Physical Properties
Items Unit 8*12 Mesh 4*6 Mesh
Bead Size mm 1.6-2.5 3.0-5.0
Bulk Density g/ml ≥ 0.68-0.85 0.65-0.80
Equilibrium Water Capacity @ 25℃ wt% ≥ 24.0-27.0 24.0-27.0
Equilibrium Carbon Dioxide Capacity wt% ≥ 18 18
Heat of Adsorption BTU/lb of H2O 1800 1800
Crush Strength Point Contact N ≥ 30-80 80-130
Variation Coefficient - 0.3 0.3
Attrition Rate wt% ≤ 0.1 0.1
Size Qualification % ≥ 97 97
Package Moisture wt% ≤ 1.5 1.5
The interval value of the indexes above are on the basis of the different grade of Molecular Sieve 13X



  • Air separation zeolite molecular sieve for oil and gas pure cannot be exposed in the open air and should be stored in dry condition with the air-proof package.
  • Air separation zeolite molecular sieve for oil and gas pure should be regenerated after a certain period of adsorption. The appropriate regenerated temperature would be better below 350°c.
