Best Specialized 13X-HP Molecular Sieve Desiccant For Generate Oxygen Making
Product Introduction of 13X Molecular Sieve Desiccant:
Molecular sieves are a class of crystalline aluminosilicates that have many excellent features due to their uniform pore size and extremely high specific surface area.
1. The adsorption effect is selected according to the size and shape of the molecules, that is, only those molecules smaller than the pore size of the molecular sieve are adsorbed.
2. For small polar molecules and unsaturated molecules, it has a selective adsorption function. The larger the polarity, the higher the degree of unsaturation, and the stronger the selective adsorption.
3. Strong water absorption. Even at higher temperatures, higher air velocities, and lower water content, there is still a very high water absorption capacity.
Molecular sieves can taste the short-term high temperature of 600-700 ℃, but the regeneration temperature is usually below 400℃. Molecular sieves can be used in the field of PH 5-10 medium; Can communicate certain metal cations in salt solutions.
Specification of 13X Molecular Sieve Desiccant:
| Molecular Formula | Na2O·Al2O3·(2.8±0.2)SiO2 ·(6-7)H2O |
| SiO2/ Al2O3 | ≈ 2.6-3.6 |
| Normal Pore Opening | 10 Angstroms (Å) |
| Regeneration temp. (°C) | 200-315 |
| Advantages | High Stability; High Crush Strength; Large Water Absorption; Low Attrition; Deep Dehydration |
| Molecular Sieve 13X Typical Physical Properties | ||||
| Items | Unit | 8*12 Mesh | 4*6 Mesh | |
| Bead Size | mm | 1.6-2.5 | 3.0-5.0 | |
| Bulk Density | g/ml ≥ | 0.68-0.85 | 0.65-0.80 | |
| Equilibrium Water Capacity @ 25℃ | wt% ≥ | 24.0-27.0 | 24.0-27.0 | |
| Equilibrium Carbon Dioxide Capacity | wt% ≥ | 18 | 18 | |
| Heat of Adsorption | BTU/lb of H2O | 1800 | 1800 | |
| Crush Strength | Point Contact | N ≥ | 30-80 | 80-130 |
| Variation Coefficient | - | 0.3 | 0.3 | |
| Attrition Rate | wt% ≤ | 0.1 | 0.1 | |
| Size Qualification | % ≥ | 97 | 97 | |
| Package Moisture | wt% ≤ | 1.5 | 1.5 | |
| The interval value of the indexes above are based on the different grades of Molecular Sieve 13X | ||||

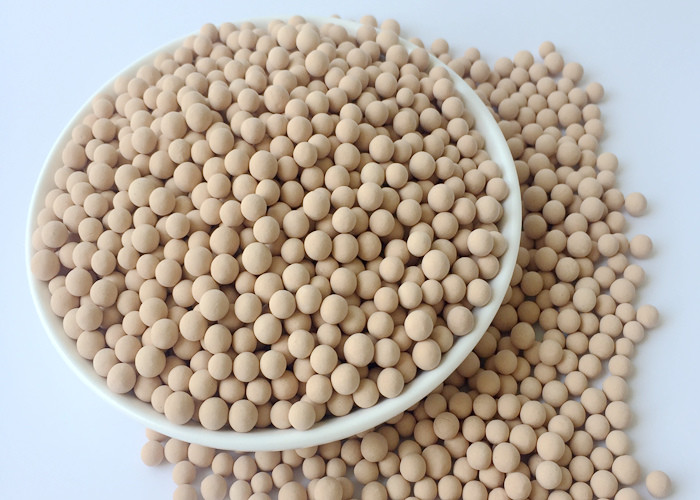

Product Photo of 13X Molecular Sieve Desiccant:
Applications of 13X Molecular Sieve Desiccant:
1. High-quality Zeolite Molecular sieve 13X for Oxygen PSA, LPG used for medical oxygen in small-scale
oxygen concentrators;
2. High-quality Zeolite Molecular sieve 13X for Oxygen PSA, LPG removal of mercaptans and hydrogen
sulfide from natural gas;
3. High-quality Zeolite Molecular sieve 13X for Oxygen PSA, LPG used for the deep drying of general gas
(such as compressed air, permanent gases);
4. High-quality Zeolite Molecular sieve 13X for Oxygen PSA, LPG ammonia synthesis gas drying, and
purification, production of bulk oxygen in PSA units;
5. High-quality Zeolite Molecular sieve 13X for Oxygen PSA, LPG is applied in the desiccating process
of industrial gas and gas purification in air separation unit;
6. High-quality Zeolite Molecular sieve 13X for Oxygen PSA, LPG removed CO2 in cracked gas, air plant feed purification (simultaneous removal of H2O and CO2);
7. High-quality Zeolite Molecular sieve 13X for Oxygen PSA, LPG has the characteristics of high CO2
adsorption capacity, low regeneration temperature, and long service life;
8. High-quality Zeolite Molecular sieve 13X for Oxygen PSA, LPG used for desulfurization aerosol propellant
deodorant and removal of n-chained composition from aromatics;
9. High-quality Zeolite Molecular sieve 13X for Oxygen PSA, LPG dehydration, and desulfuration of natural
gas, liquefied petroleum gas(LPG), liquid alkane, and liquefied hydrocarbon;
10. High-quality Zeolite Molecular sieve 13X for Oxygen PSA, LPG used for natural gas, liquefied petroleum
gas, liquid paraffin (propane, butane) dehydration, and desulphurization (removal of H2S and mercaptan).
The Attention of 13X Molecular Sieve Desiccant:
1. Xi'an Lvneng molecular sieve 13X desiccant cannot be exposed in the open air and should be stored in dry condition with the air-proof package.
2. Xi'an Lvneng molecular sieve 13X desiccant should be regenerated after a certain period of adsorption. The appropriate regenerated temperature would be better below 350°c.
